VLT Roller Brake Testers for heavy vehicles

ROLLER BRAKE TESTERS
VLT140233-G6 / VLT160233-G6 / VLT160733-G6

The compact series roller brake testers for heavy vehicles were developed to fit in existing recesses or subframes from other brands. Although they have reduced outside dimensions, they have the same drive systems and roller diameters as our full size models.

compact brake tester

SPECIFICATIONS
VLT140233-G6 / VLT160233-G6 / VLT160733-G6 (UK)

Measuring range: 0 – 35 kN / 0 - 40 kN / 0 - 4000 kgf
Max. axle weight: 14000 kg / 16000 kg / 16000 kg
Max. drive-over weight: 16000 kg / 18000 kg / 18000 kg
Testing speed: 2.6 km/h / 2.6 + 5.2 km/h / 1.3 + 2.6 km/h
Roller dimensions: 260 x 1000 mm
Centre distance rollers: 470 mm
All rollers 40 mm avove floor level
Testing width: depends on existing recess or subframe
Rollerset dimensions: 1300 x 790 x 550 mm
Electric motors: 2 x 11 kW / 2 x 11 kW / 2 x 5.5/11 kW

Standard features:

Mechanical roller locking
Axle weighing system
Counterwise rotating rollers (4x4 test)
Applied brake test (VLT160733-G6)
Radio frequency remote control
UK model (VLT160733-G6) includes full DVSA database

GALLERY

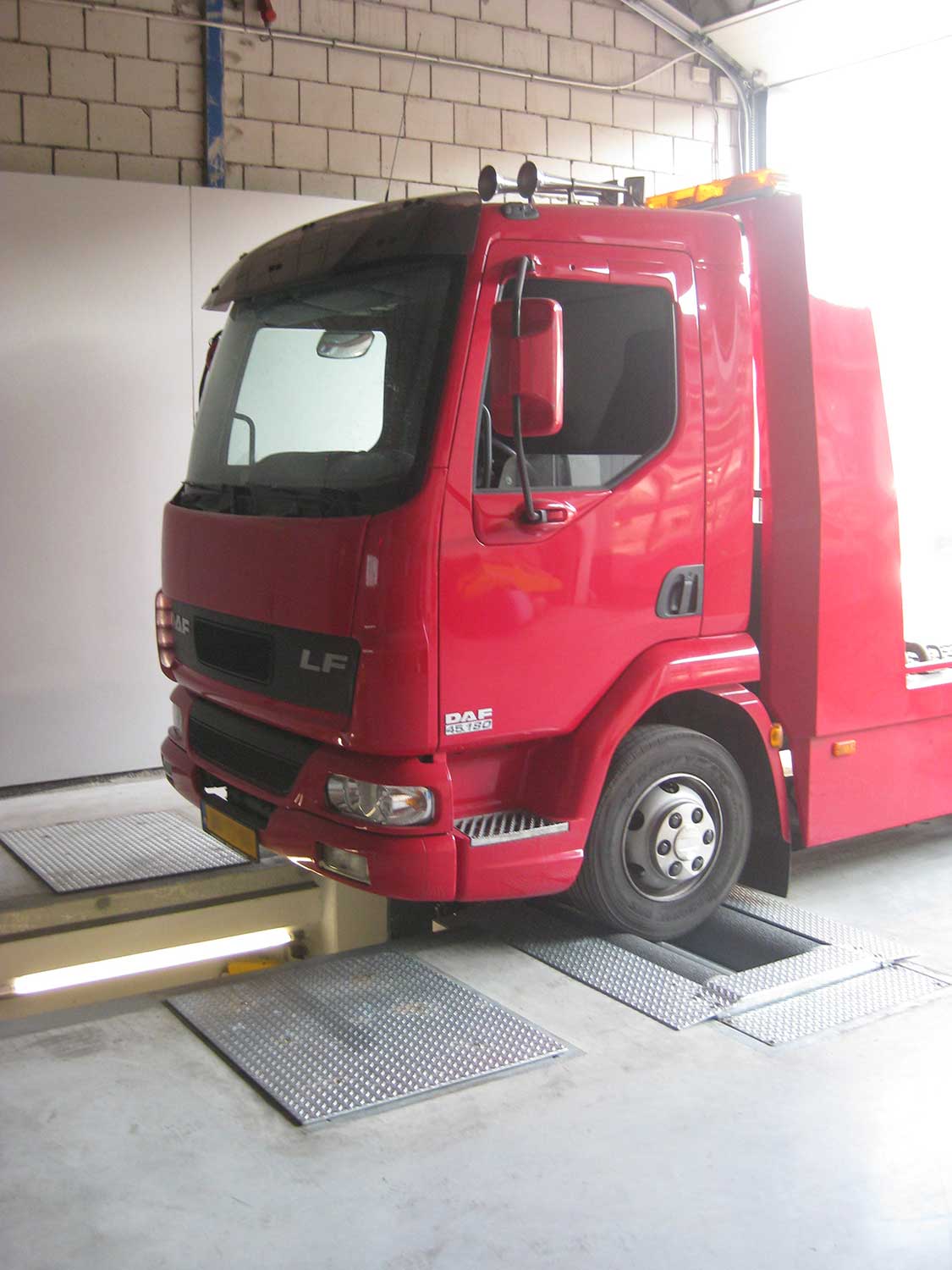

Roller brake tester VLT160233-G6

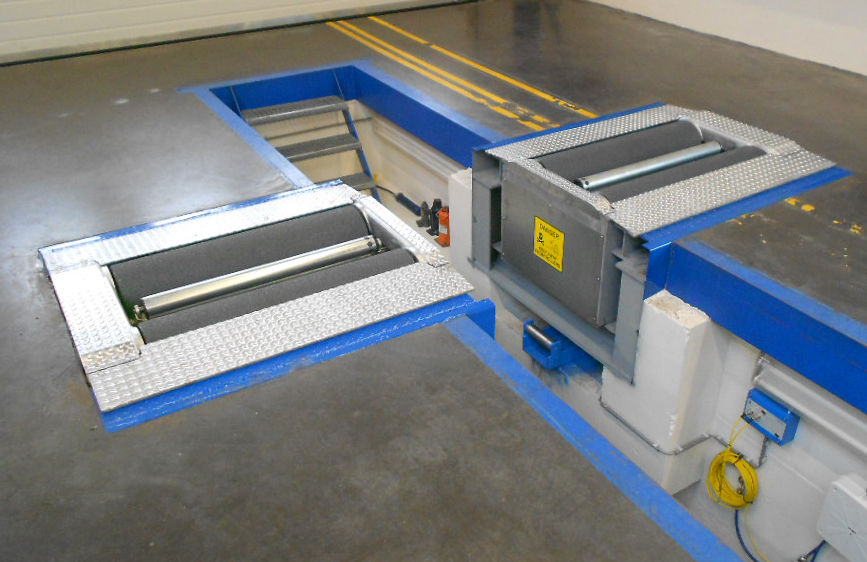

Roller brake tester VLT160233-G6

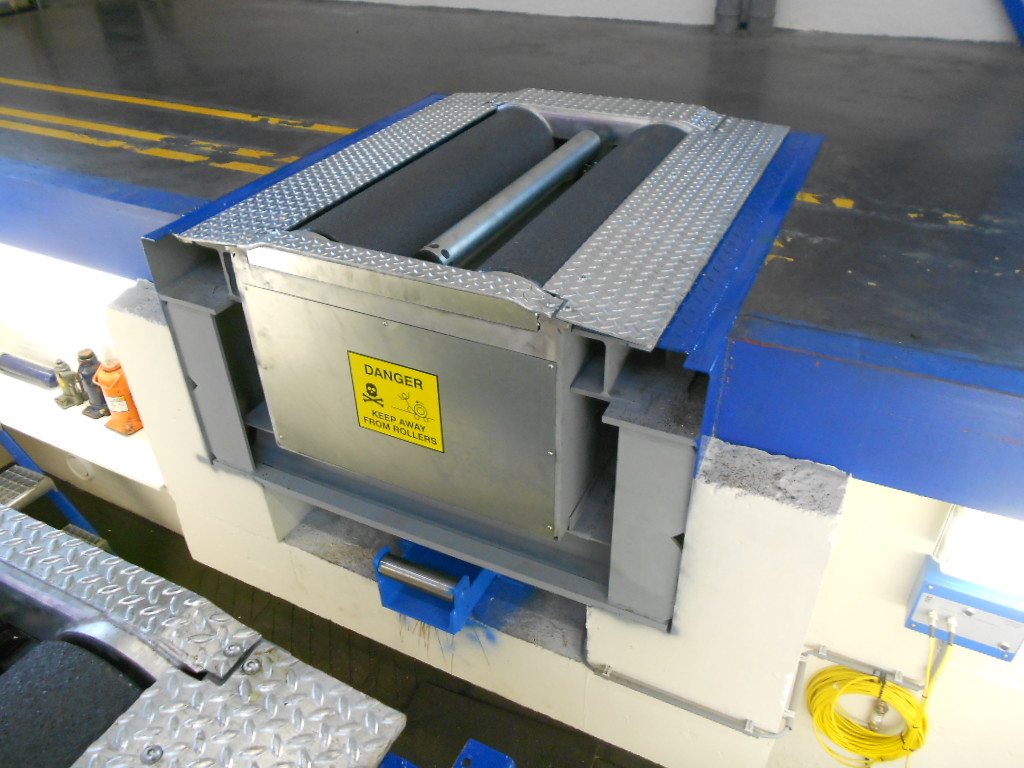

Roller brake tester VLT160233-G6

Roller brake tester VLT4233-G6

OPTIONS AND ACCESSORIES

readout options

data entry

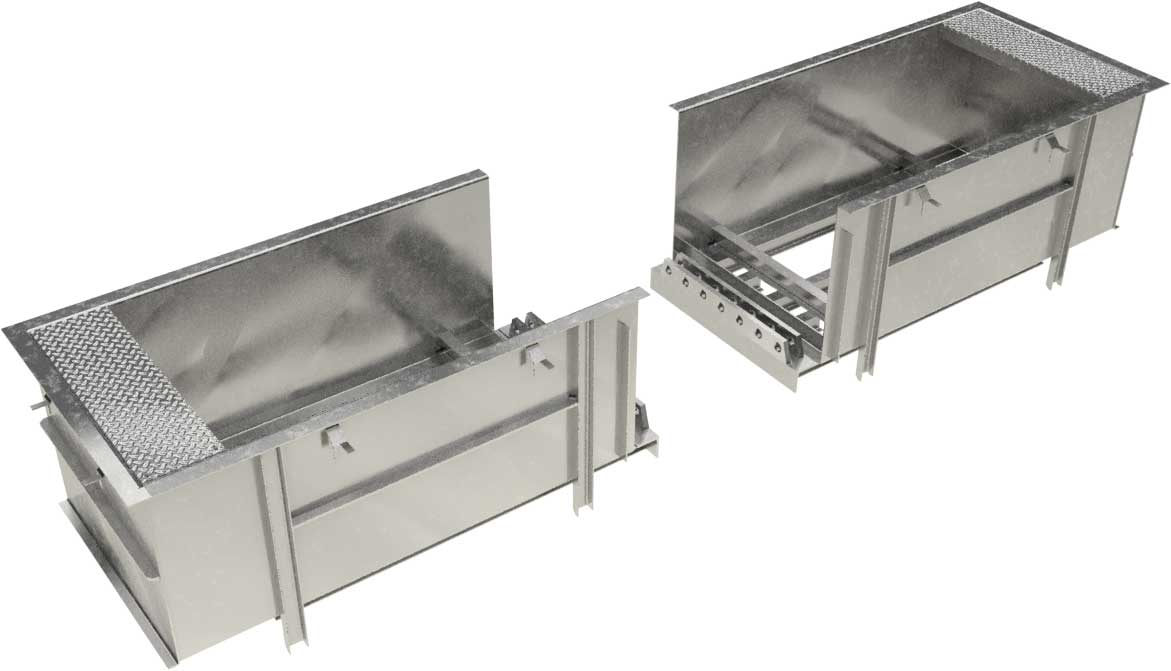

subframes

pedal force transducers

air pressure transducers

drive-over plates

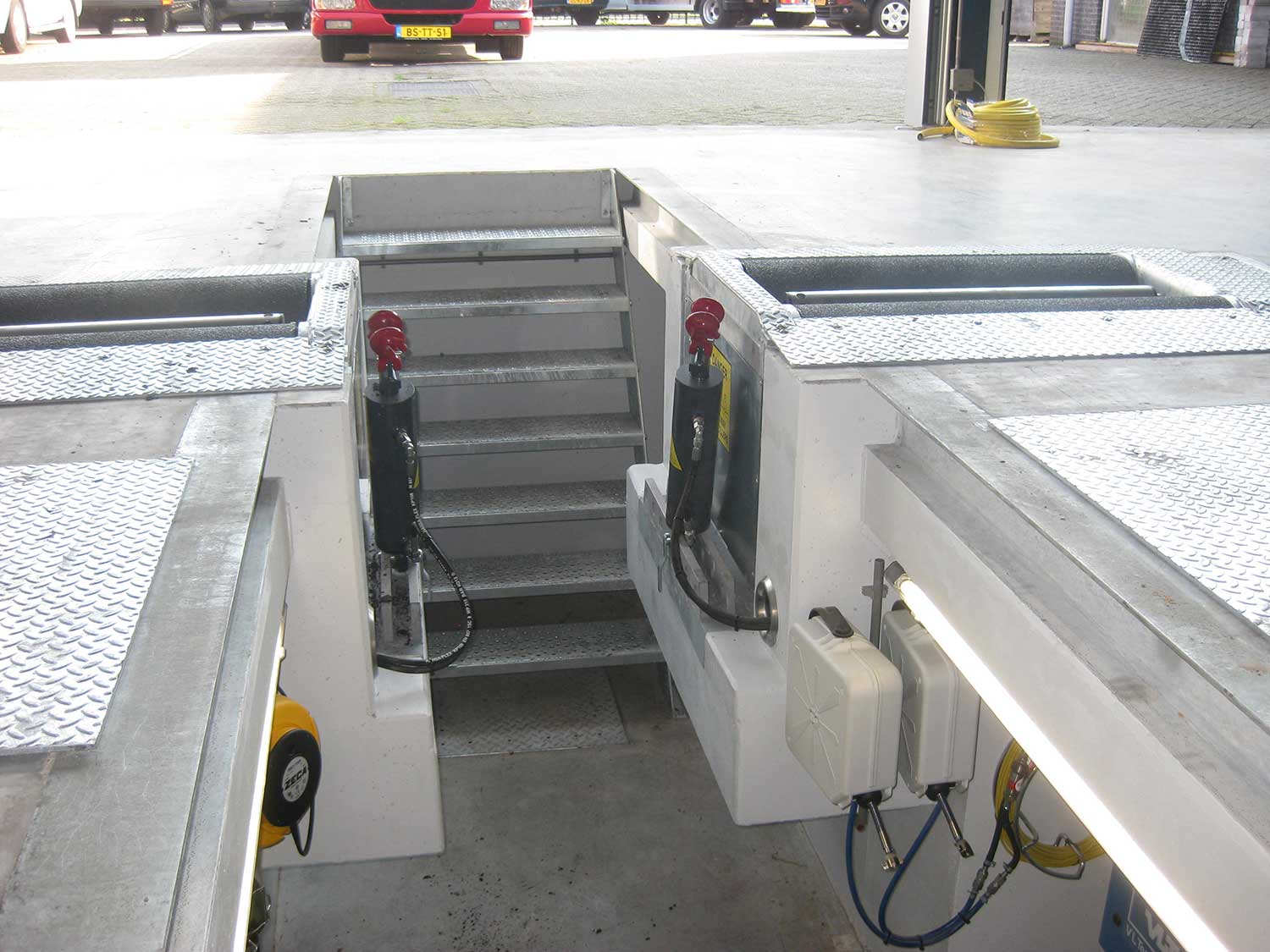

load simulator
