VLT subframes for brake testers for heavy vehicles

SUBFRAMES

for brake testers for heavy vehicles, compact models

VLT advises steel subframes for installation of equipment in the concrete floor. A subframe makes installation and maintenance of equipment easier.
All VLT subframes are robot welded gavanised steel.

VLTBIF13003/C550

For VLT140233-G6, VLT160233-G6
Over pit installation
Load simulator cylinders attachments
Test width 1000 x 3000 mm
L x W x H = 4000 x 925 x 830 mm

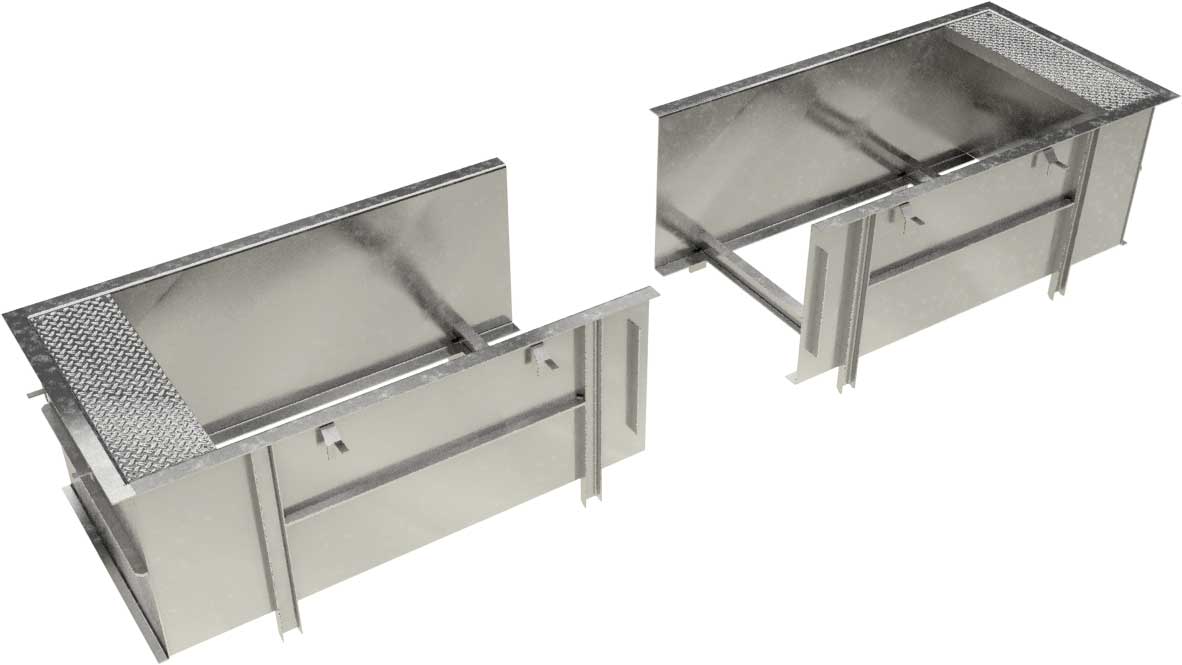

VLTBIF13007/C550

For VLT140233-G6, VLT160233-G6
Over-pit installation
Test width 800 x 2800 mm
L x W x H = 3800 x 925 x 725 mm

VLTBIF13037/C550

For VLT140233-G6, VLT160233-G6
Non-pit installation
Test width 800 x 2800 mm
L x W x H = 3800 x 925 x 725 mm
